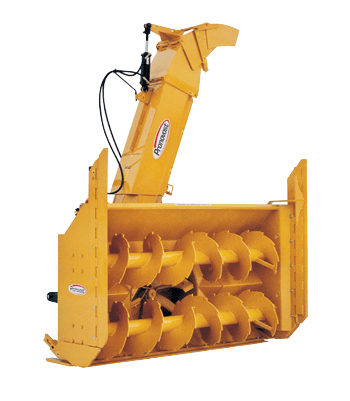

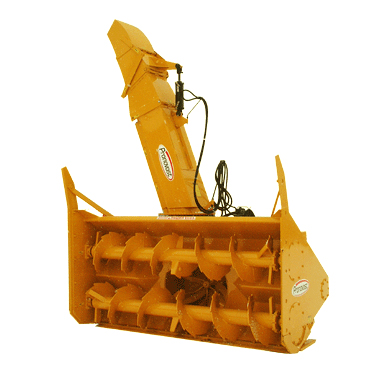

Pronovost Full Flight Auger Series Industrial Snow Blowers

P-982TRC-150	P-1022TRC-200
Industrial Snow Blowers for Horsepower From 125 - 200 HP Telescopic Chute Equipped with Precision Machined, Greaseable Hinges. Two Double-Acting Slide Cylinders Assure a Vertical Displacement of 32". Front Access Panels Open Rapidly to Increase Efficiency Even in the Most Severe Snow Conditions. Adjustable Carbide Skid Shoes. Hydraulic Chute Rotation Kit for Motor. Steel Reinforcing Plates at Strategic Points. Removable Carbon Steel Cutting Edge Set on a 6° Angle, Sharpened. Extra Capacity Roller Bearings with Ductile Cast Iron Flanges for Intensive Service! Can be Installed in a Few Minutes on a Tractor From 125 to 200 HP, Having Category 2 Three Point Hitch & PTO Drive of 1000 or 540 RPM. The Hydraulic Motors for the Chute & Drum Mechanisms are Protected by Cushion Valves. Hydraulic Motor MLH315 for Chute Rotation & Drum Rotation. Dual Sprocket, Spring Loaded Chain Binder Maintains Constant Tension on the Drive Chain. #100 HD Roller Drive Chain in an Oil Bath. Gearbox, Speed Reducer, PTO Shaft & Impeller are Protected by an Easy-Access Shear Bolt Located on the PTO Shaft. PTO Category V90, Multilobe. Welded Carbon Steel Teeth on the 2 Full Flight Spiked Auger. Chute Bases Have a UHMW Low Friction Rotary System for Easier Rotation That Prevents Freezing. Rotary Drum Side Discharge Deflector.

STANDARD FEATURES

Extra Heavy-Duty Impeller Balanced & With Six Curved, Replaceable Carbon Steel Blades.	Both Augers Protected By a Shear Bolt Easily Accessible for Maintenance.	Quick Adjustment Skid Shoes Equipped with Carbide Wear Plates.
3 Gear Reducer 1000/555 or 1000/562 Reducers in Option.	Easy Impeller Adjustment For Optimum Efficiency Year After Year.
OPTIONAL FEATURES

PCT-IND Telescopic Chute Equipped with HARDOX450 Steel Wear Plates on the Inside.	Drift Cutters Also Available: Hydraulically Controlled Drift Cutters Made of HARDOX450 Steel.

PRONOVOST FULL FLIGHT AUGER SERIES SNOW BLOWER SPECIFICATIONS
MODEL	P-982TRC	P-1022TRC
Recommended Power	100 - 200 HP	175 - 300 HP*
Approx. Performance (Tractor)	1400 Imp. Tons/Hour (150HP)	2200 Imp. Tons/Hour (200HP)
Height of Telescopic Chute (In Working Position)	120" Closed - 150" Extended (Approx.)	121" Closed - 151" Extended (Approx.)
Height of Chute Base	51"	52"
Chute Rotation	With Hydraulic Motor & Cushion Valve Included
Height of Shroud	52"	59"
Height of Drift Cutters	Std: 59" CL: 77" CLH: 77"	Std: 62" CL: 84" CLH: 84"
Working Width¹	98"	102"
Drum Diameter	34"	37"
Depth of Drum	15"
Drum Rotation	With Hydraulic Motor & Cushion Valve Included
Drum Position	Centered
Drum Construction	1/4", 450 Carbon Steel	3/8", 450 Carbon Steel
Number of Impeller Blades	6 x 3/8" Carbon Steel Replaceable Blades
Impeller Shaft Diameter & Height	2" Diam. / 21-3/4" Height	2-1/2" Diam. / 23" Height
Direction of Rotation of Impeller	CCW
Impeller Rotation Speed	540 RPM
RPM Required for the Tractor PTO	1000 RPM
Speed Reducer	Suggested Option² 1000/555-220HP (Non Inverting)	Suggested Option² 1000/562-250HP (Non Inverting)
Oil Cooler for Speed Reducer	--	Option Increases Capacity to 300 HP
Height of Speed Reducer Shaft	13-3/4" or 29-3/4" (with Red. 150HP)	13" or 33" (with Red. 300 HP)
Standard PTO Shaft	V90 (Choices of Yokes as Required)
Main Auger	Full Flight 18" with Welded Carbon Steel Teeth	Full Flight 20" with Welded Carbon Steel Teeth
Upper Auger	Full Flight 18" with Welded Carbon Steel Teeth	Full Flight 20" with Welded Carbon Steel Teeth
Drive Chain of Auger(s)	N^o 100 HV Renold Chain in Oil Bath
Shear Bolts	1 on Rotor & 1 on Augers
Scraper Blades - Carbon Steel 1/2" x 6" Sharpened	Standard	--
Scraper Blades - Carbon Steel 5/8" x 6" Sharpened	--	Standard
Skid Shoes - ROCKTEC (Quick Adustment)	Standard / 2 Skid Shoes
Skid Shoes - Lateral Skid Shoe for Skidewalks	Option
3-Point Hitch	Category 2 Hitch Pin	Category 2 Hitch Pin (Others Available)
Frame: Sides	5/16"	3/8"
Frame: Back	9 Gauge	3/16"
Center of Gravity from 3-Point at It's Shortest	41-1/4"	42-3/4"
Torque	174 900 lbs.-po	222 300 lbs.-po
Weight	4,240 lbs. with Telesc. Chute & Reducer	5,200 lbs. with Telesc. Chute & Reducer
*With Oil Cooler Option. ¹Without Sidewalk Skate. ²Contact Iowa Farm Equipment to Learn About All Available Reducer Models.

Specifications & Designs Are Subject to Change Without Notice
