Pronovost Open Flight Auger Series Industrial Snow Blowers

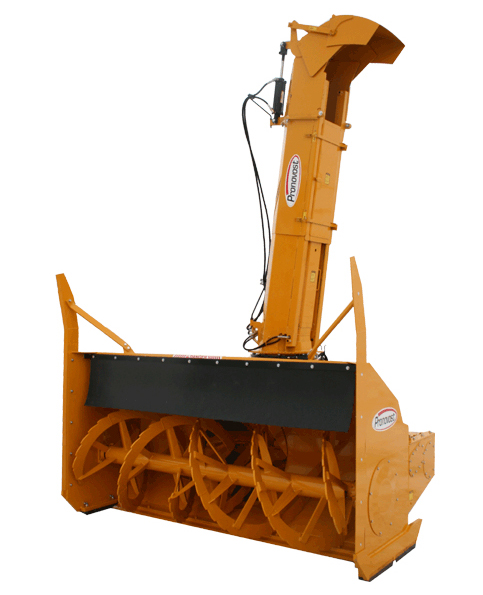

Pronovost Open Flight Auger Snow Blowers
PGV-1021TRC-150

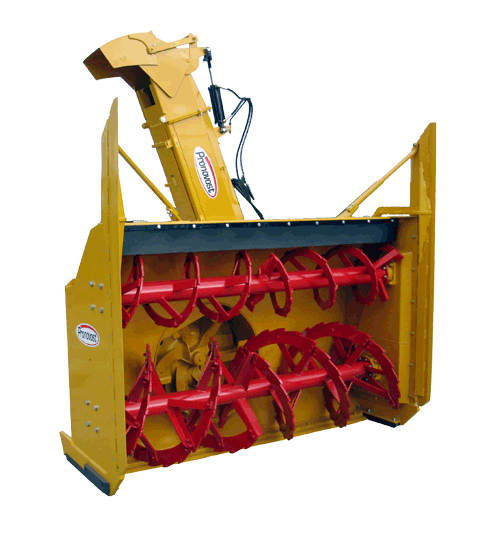

Pronovost Open Flight Auger Snow Blowers
PGV-1022TRC-220

Industrial Snow Blowers for Horsepower From 100 - 300 HP

  • Carbon Steel 400 Scraper Blade, Sharpened.
  • Industrial Skid Shoes (Adjustment by Spacers), Carbide Sole.
  • Hydraulic Chute Rotation Kit for Motor.
  • Hydraulic Motor MLH-315 with Cushion Valve for Chute Rotation.
  • PTO Category V90, Multilobe.
  • Hydraulic Motor MLH-315 with Cushion Valve for Drum Rotation.
  • Reducer 1000/540 (250 HP at 1000 RPM) 2 Gears - 6-3/4" c/c.

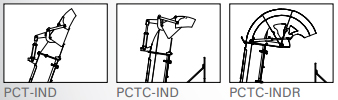

  • Choice of a Semi-Industrial Chute or the New Industrial Telescopic Hydraulic Chute Redesigned for Superior Performance.
  • 20" Upper Auger with Welded Carbon Steel Teeth on PGV-1022TRC-220.
  • Welded Carbon Steel Teeth on Removable Auger Flight Sections. 34" Auger Diameter (PGV-1021TRC-150 & PGV-1022TRC-220).
  • Heavy-Duty Frame Thanks to Steel Reinforcing Plates Installed at Strategic Points for Structural Integrity.
  • Four Adjustable Skid Shoes for an Outstanding Durability.

Pronovost Open Flight Auger Snow Blowers

STANDARD FEATURES

Pronovost Open Flight Auger Snow Blower
Augers
Assembled on Quick Dismount Hubs Designed for Easy Removal & Oversized Bearings for Intensive Service.

Pronovost Open Flight Auger Snow Blower
High Performance Impeller
Interchangeable HARDOX450 Blades. Inverted Rotation Allows the Snow to be Blown Closer to Transport Trucks for More Efficiency.

Pronovost Open Flight Auger Snow Blower
Extra Heavy-Duty 3 Point Hitch
Less Strain is Put Upon the 3 Point Hitch Since the Center of Gravity is Closer to the Tractor. Design Exclusive to Pronovost!

Pronovost Open Flight Auger Snow Blower
Renold 100HV Roller Chain
Protected by an Enclosed Oil Bath & Fitted with a Self-Adjusting Heavy-Duty Tensioner Allowing You to Work Over Extended Periods Without Servicing.

Pronovost Open Flight Auger Snow Blower
Easy Impeller Adjustment
For Optimum Efficiency Year After Year.

Pronovost Open Flight Auger Snow Blower
Inverter Gear Box
(1000/562) Allows Adjustment for the Input Shaft's Height to Maximize Working Angle for Less Downtime.

Pronovost Open Flight Auger Snow Blower
8' Directional Hydraulic Drift Cutters
For Better Performance in Hardened Snow. Also Available: Stationary Drift Cutters Made of HARDOX450 Steel.

Pronovost Open Flight Auger Snow Blower
Lateral Carbide Skid Shoes
To Prevent Premature Wear Caused by Curbs & Sidewalks.

A BREAK-THROUGH IN THE SNOW REMOVAL WORLD!

  • Less Snow Spillover.
  • Less Snow Leftover on the Ground.
  • Less Demanding on Your Engine Since the Snow Blower is Easier to Turn.
  • Easier to Go Through Hardened Snow or Ice.
  • More Fun to Use!

PRONOVOST OPEN FLIGHT AUGER SERIES
SNOW BLOWER SPECIFICATIONS
MODEL PGV-1021TRC PGV-1022TRC PGV-1202TRC
Recommended Power 100 - 200 HP 175 - 300 HP* 175 - 300 HP*
Approx. Performance 1600 Imp. Tons/Hour (150HP) 2500 Imp. Tons/Hour (200HP)
Height of Telescopic Chute (In Working Position) 129" Closed - 160-1/2" Extended (Approx.) 131" Closed - 162-1/2" Extended (Approx.)
Height of Chute Base 52" 54"
Chute Rotation With Hydraulic Motor & Cushion Valve Included
Height of Shroud 53" 68-1/4"
Height of Drift Cutters Std: 59" CL: 78" CLH: 78" Std: 75-1/2" CL: 96-1/2" CLH: 96-1/2"
Working Width1 102" 118-1/4"
Drum Diameter 34" 37"
Depth of Drum 15"
Drum Rotation With Hydraulic Motor & Cushion Valve Included
Drum Position Offset 6" to the Right Offset 5" to the Right
Drum Construction 1/4", 450 Carbon Steel 3/8", 450 Carbon Steel
Number of Impeller Blades 6 x 3/8" Carbon Steel Replaceable Blades
Impeller Shaft Diameter & Height 2" Diam. / 22-1/4" Height 2-1/2" Diam. / 24" Height
Direction of Rotation of Impeller CW
Impeller Rotation Speed 540 RPM
RPM Required for the Tractor PTO 1000 RPM
Speed Reducer Included2
1000/562-250HP (Rotation Inverter)
Oil Cooler for Speed Reducer -- Option Increases Capacity to 300 HP
Height of Speed Reducer Shaft Adjustable from 27-3/8" to 19-1/4" Adjustable from 29-7/8" to 18"
Standard PTO Shaft V90 (Choices of Yokes as Required)
Main Auger Dual Band, Bolted, 34" Diam., Carbon Steel Teeth
Upper Auger -- Single Band, 20" Diam., Carbon Steel Teeth
Drive Chain of Auger(s) No 100 HV Renold Chain in Oil Bath
Shear Bolts 1 on Rotor & 1 on Augers
Scraper Blades - Carbon Steel 1/2" x 6" Sharpened Standard -- --
Scraper Blades - Carbon Steel 5/8" x 6" Sharpened -- Standard
Skid Shoes - ROCKTEC (Spacers Adjustment) Standard / 4 Skid Shoes
Skid Shoes - Lateral Skid Shoe for Skidewalks Option
3-Point Hitch Category 2 Hitch Pin Category 2 Hitch Pin (Others Available)
Frame: Sides 1/4" 5/16"
Frame: Back 10 Gauge 9 Gauge & 3/16"
Center of Gravity from 3-Point at It's Shortest 39" 40-9/16"
Torque 173 550 lbs.-po 222 079 lbs.-po 229 701 lbs.-po
Weight 4,450 lbs. with Telesc. Chute & Reducer 5,475 lbs. with Telesc. Chute & Reducer 5,663 lbs. with Telesc. Chute & Reducer
*With Oil Cooler Option. 1Without Sidewalk Skate. 2Contact Iowa Farm Equipment to Learn About All Available Reducer Models.
Specifications & Designs Are Subject to Change Without Notice
