Video of Selvatici Series 150.150, Model B2208P At Work In Greenhouse Building, Operating At Low Gear Box Speed!

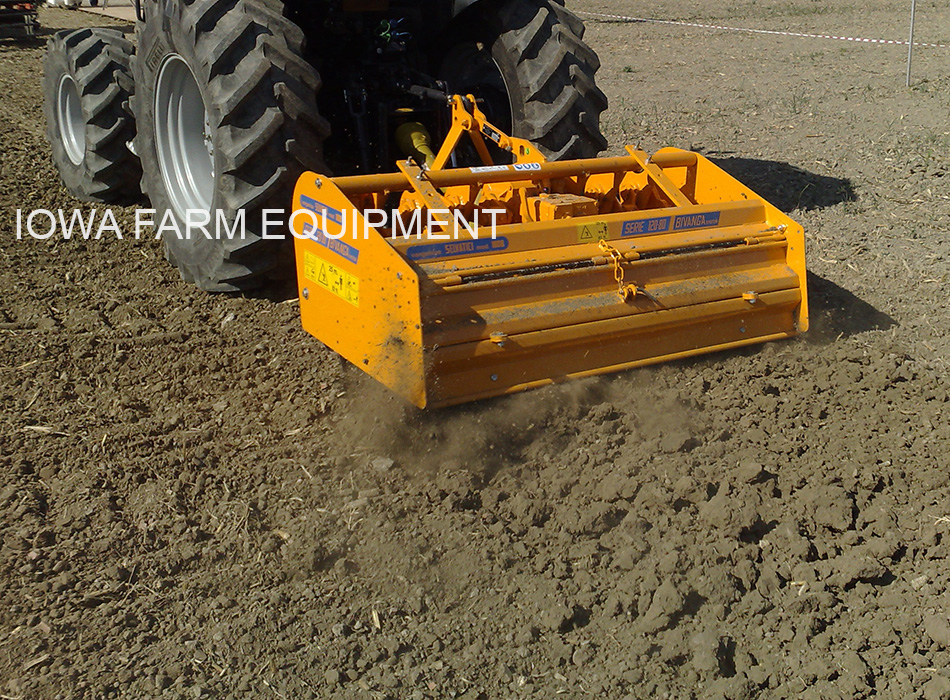

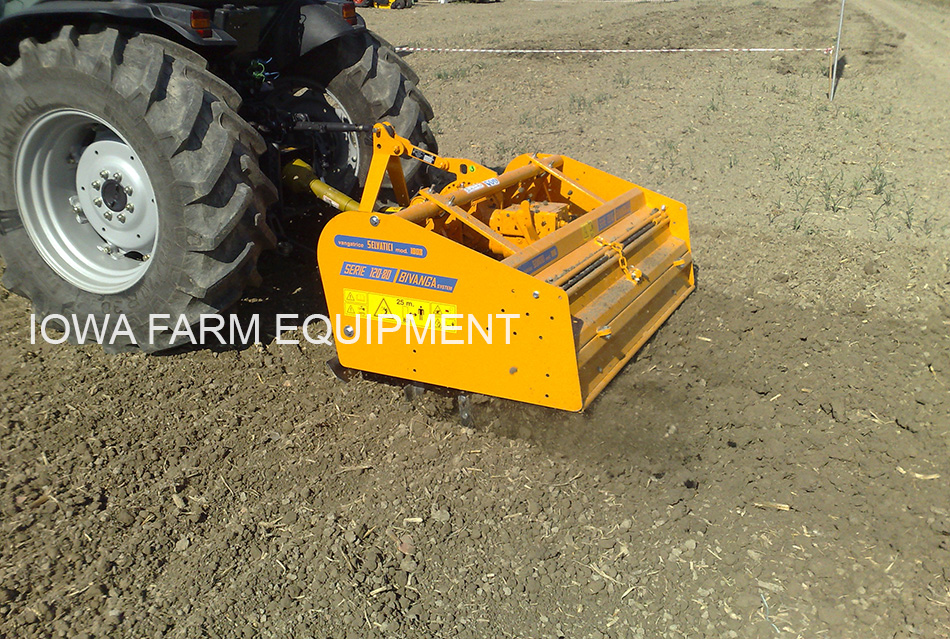

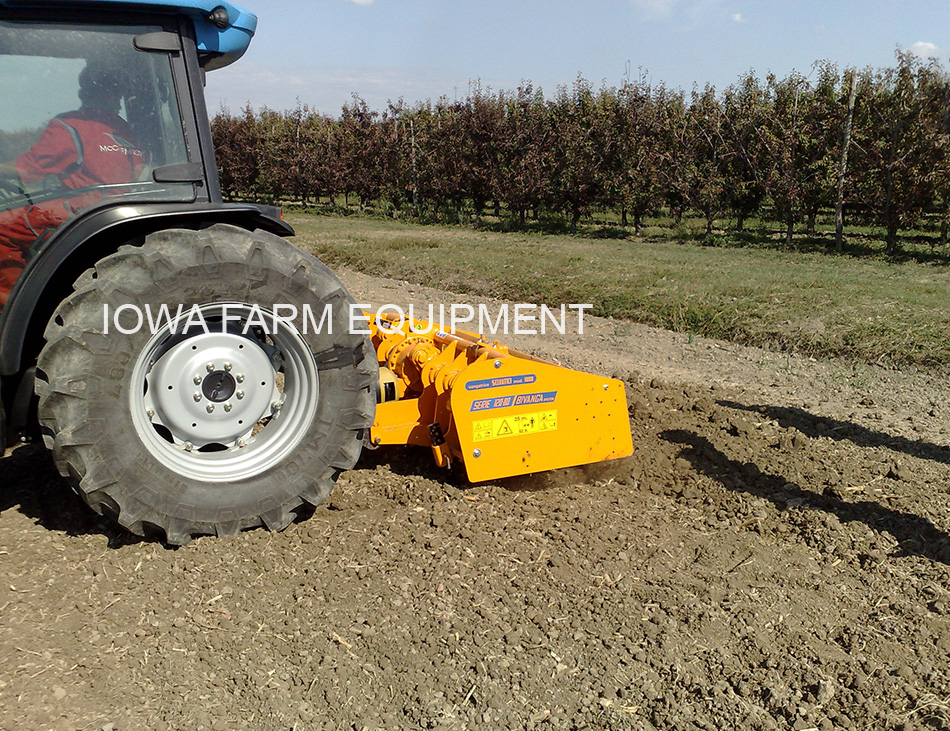

The B120.80L Series Spaders Are Suitable For Compact & Utility Tractors, With Working Widths Up To 79". They Provide Highly Concentrated Soil Penetrations From 4" to 20" Deep, Efficiently, in a Single Pass.
STANDARD FEATURES:
Heavy Duty, 540RPM, Large Sump 3-Speed Gearbox.
Slip Clutch Protected PTO Shaft.
Category 1&2, 3-Point Hitch with Clevis Style Hitch Pin Frames.
3-Speed Gearbox, with Easy Shift External Lever For Accommodating a Broad Range of Soil Types & Activities!
Selvatici's Wear-Resistant Spader Blades Use 'Ultra-High Strength Steel, Alloyed With 30MnB5 Boron' To Endure Tough Ground & Rocks!
Multiple Holding Positions of Rear Gate, From Open to Closed:
Works in Conjunction with Multi-Speed Gearbox, For Varied Soil Results, and Varied Soil Moisture.
Multi-Positioned, Anti-Clogging Frame Also Accommodates Varied Soil Moisture Conditions.
Greaseable Bearings with Extended Intervals.
Skid Shoes For Easy, Tool Free Working Depth Control.
B120.80L SERIES SPECIFICATIONS
MODEL
B904L
B1004L
B1104L
B1306L
B1456L
B1606L
B1808L
B2008L
Working Width
36"
40"
44"
52"
57"
63"
72"
79"
Overall Width
38"
42"
46"
54"
59"
65"
74"
81"
Minimum HP
30HP
35HP
38HP
40HP
45HP
Maximum HP
80HP
Min/Max Working Depth
4"/20"
Number of Spades
8
12
16
Gearbox Speeds
145, 167 & 205RPM’s
Weight
1,166lbs.
1,188lbs.
1,210lbs.
1,474lbs.
1,518lbs.
1,540lbs.
1,804lbs.
1,848lbs.
B120.80L SERIES SPECIFICATIONS
MODEL
B904L
B1004L
B1104L
B1306L
B1456L
B1606L
B1808L
B2008L
Working Width
36"
40"
44"
52"
57"
63"
72"
79"
Overall Width
38"
42"
46"
54"
59"
65"
74"
81"
Minimum HP
30HP
35HP
38HP
40HP
45HP
Maximum HP
80HP
Min/Max Working Depth
4"/20"
Number of Spades
8
12
16
Gearbox Speeds
145, 167 & 205RPM’s
Weight
1,166lbs.
1,188lbs.
1,210lbs.
1,474lbs.
1,518lbs.
1,540lbs.
1,804lbs.
1,848lbs.
Specifications & Designs Are Subject to Change Without Notice
