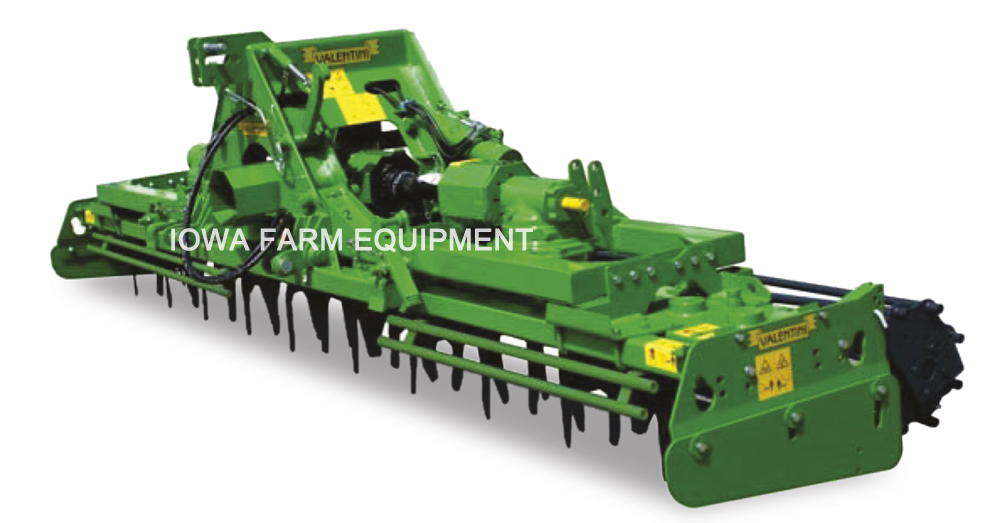

As with ALL Valentini Power Harrows, the 'D' Series Is Quick-Hitch Compatible, and has been providing Excellent Soil Conditioning & Seed Bed Preparation in all types of soils - without inverting the soil, leaving nutrients on the top layer, leaving weed seeds deep & dormant, and not inverting moist substructure soils, preventing unwanted loss of moisture! The results have been proven in applications varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the most unconventional settings, Valentini has proven to have Bullet Proof Reliability, while producing Excellent Results in one pass! Whether your ground conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, expect to get the results you want with Valentini Power Harrows.
STANDARD FEATURES:
Quick Hitch Compatible, Cat 3, 3-Point Hitch.
Floating Pull Arm Hitches.
1000RPM Large Sump Gearbox.
2 Way Cylinders for Hydraulic Folding & Opening of Power Harrow Sections.
Two Blades Per Rotor.
9" Spacing Between Rotors Provides Highest Population of Blades.
Heated Treated, Ultra-Hardened Central & Side Gears, and Blade Holders.
Adjustable Leveling Bar For Seed Bed Leveling, Finish Grading, Soil Conditioning, Filling Ruts & Washouts, etc!
Side Skirts for Containment are Adjustable.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Manually Adjusted Rear Rollers (Working Depth) via Rear Corner Pin-Adjustments.
Optional Adjustment Methods.
Manual Hand Crank or Hydraulic Adjusting Kit for Infinite Travel Adjustment.
Safety Guards.
The Standard Leveling Bar Makes Valentini Power Harrows Excellent For Pasture Renovation By Producing Level & Conditioned Seed Bed Soils. It Also Makes It A Versatile PTO Powered Tool For Rough & Finish Grading, Filling Washouts, Conditioning Dirt Race Tracks, Conditioning Equestrian Paths & Paddocks, Fire Breaks & Dirt Trails, And Much, Much More!
QUICK HITCH COMPATIBILITY
Another Standard Feature!
ACCESSORIES
REAR ROLLERS
Provides Superior Working Depth Adjustment & Soil Conditioning.
Available with Manual or Hydraulic Adjustment.
Use the Hydraulic Adjustment Option & Control Working Depth Adjustment From Your Tractors Operator Station On-The-Fly!
'D' SERIES POWER HARROW SPECIFICATIONS
MODEL
3600
4000
4600
5000
Tractor Horsepower (PTO)
120 - 220HP
140 - 220HP
160 - 220HP
180 - 220HP
PTO Speed
1000RPM
Rotor
376RPM
Working Width
146"
164"
181"
198"
Overall Width
148"
166"
183"
200"
Number of Blades
32
36
40
44
Working Depth
11"
Weight with Packer Roller
4,554 lbs.
4,862 lbs.
5,170 lbs.
5,560 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
'D' SERIES POWER HARROW SPECIFICATIONS
MODEL
3600
4000
4600
5000
Tractor Horsepower (PTO)
120 - 220HP
140 - 220HP
160 - 220HP
180 - 220HP
PTO Speed
1000RPM
Rotor
376RPM
Working Width
146"
164"
181"
198"
Overall Width
148"
166"
183"
200"
Number of Blades
32
36
40
44
Working Depth
11"
Weight with Packer Roller
4,554 lbs.
4,862 lbs.
5,170 lbs.
5,560 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
